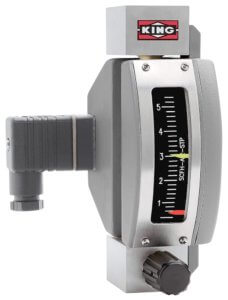

7100 Series Stainless Steel Tube Flowmeter

All 316L stainless steel construction with flanged connections makes this meter suitable for low-flow, high-pressure applications.

DESCRIPTION

Metering Tube	316L SS
Internal Components	316L SS, Hastelloy® C-276
Case and Side Cover	Die-cast Aluminum / Powder Coated with Chemfilm base (RoHS Compliant)
Fitting Material / Type	316L SS ¼” FNPT, horizontal 1/2" and 1" 150# and 300# Flange, Vertical
Scale Cover	304 SS frame Annealed glass window
O-Ring	EPR, Buna N, Kalrez®

PERFORMANCE

Flow Capacities	Water 0.6 to 25 GPH (2.4 to 95 LPH)
Flow Capacities	Air 1 to 120 SCFH (28.3 to 3,400 SLPH)
Accuracy	± 5% of full scale flow
Repeatability	1%
Turndown	10:1
Ambient Temperature	-40°F to 125°F (-40°C to 52°C)
Maximum Temperature	O-Ring	Maximum Temperature
	EPR	225° F	(107° C)
	Buna N	275° F	(135° C)
	Viton	350° F	(177° C)
	Kalrez	400° F	(204° C)
	No O-ring	400° F	(204° C)
FNPT Connection Pressure	Valve models — 1,500 psig Non-valve models — 4,000 psig
Flange Connection Pressure	Temp F	150#	300#
	200°	225 psi	600 psi
	300°	200 psi	540 psi
	400°	180 psi	515 psi

OPTIONS

Alarm	Single, Inductive Slot Sensor (See page 61)
Certified Calibrations	ISA RP 16.6
Control Valves	Inlet and outlet
CRNs	All Canadian provinces
Rear Mounting Bracket	304 SS
Scales	Any volumetric unit
High Ambient Temp	See meter maximum temperature

SPECIFICATIONS

Liquid

Order Number	Full Scale Flow Water GPH	Full Scale Flow Water LPH
02W	.6	2.4
04W	1.2	4.5
06W	2.8	10.5
08W	5.5	20
10W	12	45
12W	25	95

Gas

Order Number	Full Scale Flow Air SCFH	Full Scale Flow Air SLPH
00A*	1.0	28.3
01A	2.5	70
03A	5.5	155
05A	13	360
07A	24	680
09A	55	1550
11A	120	3400

* This meter has a titanium float. A minimum of 4 PSI is required to operate.

ALARM OPTIONS:

Inductive Slot Sensor

The alarm mechanism in this flowmeter is an inductive slot sensor. It is a 2-wire, DC, low current device
designed to be used with a switch isolator / barrier.

The operating temperature range for this sensor is -13°F to 158°F (-25°C to 70°C).

Note: We can supply the isolator / barrier upon request, but the user must provide the power supply voltage.

DIMENSIONS (INCHES)

Download Dimension Drawings

ORDERING:

Use the following guide to determine the specific product number you require.
Example: 71-0-1 - 3 - 2 - 1 - A - 10W - D

71
Meter Series	Fitting Material	O-Ring Material	Scale Desired	Valve Option	Optional Alarm	Order Number	CRN
Standard Temp.- 71-0 High Temp. - 71-H	316L SS, 1⁄4” FNPT - 1 HST® C-276, 1⁄4” FNPT - 2 316L SS, 1⁄2” 150# RF Welded - A 316L SS, 1” 150# RF Welded - B 316L SS, 1⁄2” 300# RF Welded - C 316L SS, 1” 300# RF Welded - D 316L SS, 1⁄2” 150# RF Quick Connect - E 316L SS, 1” 150# RF Quick Connect - F 316L SS, 1⁄2” 300# RF Quick Connect - G 316L SS, 1” 300# RF Quick Connect - H	EPR - 1 Buna-N - 2 Viton® - 3 Kalrez® - 4 Without O-ring* - 0	Millimeter - 1 GPH—Water - 2 LPH—Water - 3 SCFH—Air—STP - 4 SLPH—Air—STP - 5 Non-standard - 6	Inlet 316L SS - 1 Outlet 316L SS - 2 No Valve - 3 Inlet HST C-276 - 4 Outlet HST C-276 - 5	No Alarm - 0 With Alarm - A	See Specifications table	CRN Approval

*The No O-ring option is for non-valve meters only

Hastelloy (HST) C-276® is a registered trademark of Haynes International
Viton® is a registered trademark of The Chemours Company
Kalrez® is a registered trademark of the DuPont Company
